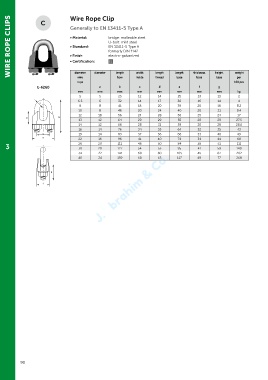

WIRE ROPE CLIPS Wire Rope Clip

Generally to EN 13411-5 Type A

• Material:
bridge: malleable steel
U-bolt: mild steel
EN 13411-5 Type A
• Standard:
formerly DIN 1142
electro-galvanized
• Finish:
• Certification:
2.1
weight
length
diameter
bow
inside
base
wire
per
base
base
rope diameter length width thread length thickness height 100 pcs

E-6260 a b c d e f g
mm mm mm mm mm mm mm mm kg
5 5 25 12 14 25 13 13 2
6.5 6 32 14 17 30 16 14 4
8 8 41 18 20 39 20 18 8.2
10 8 46 20 24 40 20 21 8.4
12 10 56 24 28 50 25 24 17
13 12 64 29 29 55 28 29 27.5
14 12 66 28 31 59 30 28 28.6
16 14 76 34 35 64 32 35 43
19 14 83 37 36 68 33 40 49
22 16 96 41 40 74 34 44 68
111
3 26 20 111 46 50 84 38 51 140
59
41
127
20
30
95
55
54
34 22 141 60 60 105 45 67 202
40 24 159 68 65 117 49 77 268
