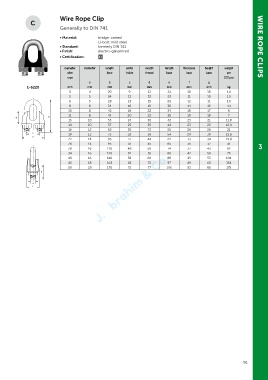

Page 91 - Green Pin Product Catalogue 2019_EN

Wire Rope Clip

Generally to DIN 741

• Material: bridge: casted
U-bolt: mild steel
• Standard: formerly DIN 741 WIRE ROPE CLIPS
• Finish: electro-galvanized
• Certification: 2.1

diameter diameter length width length length thickness height weight
wire bow inside thread base base base per
rope 100 pcs
a b c d e f g
E-6220 mm mm mm mm mm mm mm mm kg
3 4 20 9 12 21 10 10 1.4
5 5 24 11 13 23 11 10 1.5
6 5 28 13 15 26 12 11 1.6
8 6 34 16 19 30 14 15 4.1
10 8 42 19 22 34 18 17 6
11 8 44 20 22 36 19 18 7
13 10 55 24 30 42 23 21 11.8
14 10 57 25 30 44 23 22 12.4
16 12 63 29 33 50 26 26 21
19 12 75 32 38 54 29 30 23.6
22 14 85 37 44 61 33 34 23.8
26 14 95 41 45 65 35 37 41
30 16 110 48 50 74 37 43 62 3
34 16 120 52 55 80 42 50 75
40 16 140 58 60 88 45 55 104
45 18 163 65 75 97 49 60 134
50 20 170 72 77 106 51 65 175
