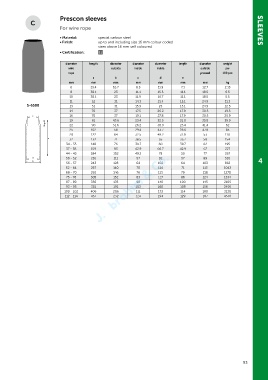

Page 93 - Green Pin Product Catalogue 2019_EN

Prescon sleeves

For wire rope SLEEVES

• Material: special carbon steel
• Finish: up to and including size 16 mm colour coded
sizes above 16 mm self coloured
• Certification: 2.1

diameter length diameter diameter diameter length diameter weight
wire outside inside inside outside per
rope pressed 100 pcs
a b c d e
mm mm mm mm mm mm mm kg
6 25.4 16.7 8.3 11.9 7.1 12.7 2.15
8 38.1 23 11.1 15.5 11.1 18.5 6.5
10 38.1 23 11.9 16.7 11.1 18.5 5.5
11 51 31 14.3 21.4 15.1 24.9 11.3
S-6500 13 51 31 15.9 23 15.1 24.9 12.5
14 70 37 17.5 26.2 17.9 30.5 19.5
16 70 37 19.1 27.8 17.9 30.5 25.9
19 81 43.6 23.4 32.5 21.8 35.8 39.9
22 90 51.6 26.2 38.9 25.4 41.4 62
25 102 58 29.4 43.7 28.6 47.8 85
28 122 64 32.5 49.2 31.8 53 118
32 132 71 36.5 55 35.7 58 154
34 - 35 148 76 39.7 60 39.7 62 195
37 - 38 159 83 42.9 66.7 42.9 67 227
44 - 45 184 102 49.2 79 50 77 367
50 - 52 216 111 57 92 57 89 510 4
56 - 57 243 128 64 102 64 103 862
62 - 64 267 140 70 114 71 113 1043
68 - 70 292 146 76 121 79 118 1270
75 - 76 305 152 83 127 86 124 1334
87 - 89 356 178 98 148 100 145 2105
93 - 95 381 191 103 160 108 156 2495
100 - 102 406 206 111 173 114 180 3130
112 - 114 457 232 124 194 129 187 4536
